How Flat Roofs Drain During Albuquerque's Monsoon Season

See How the Water Moves

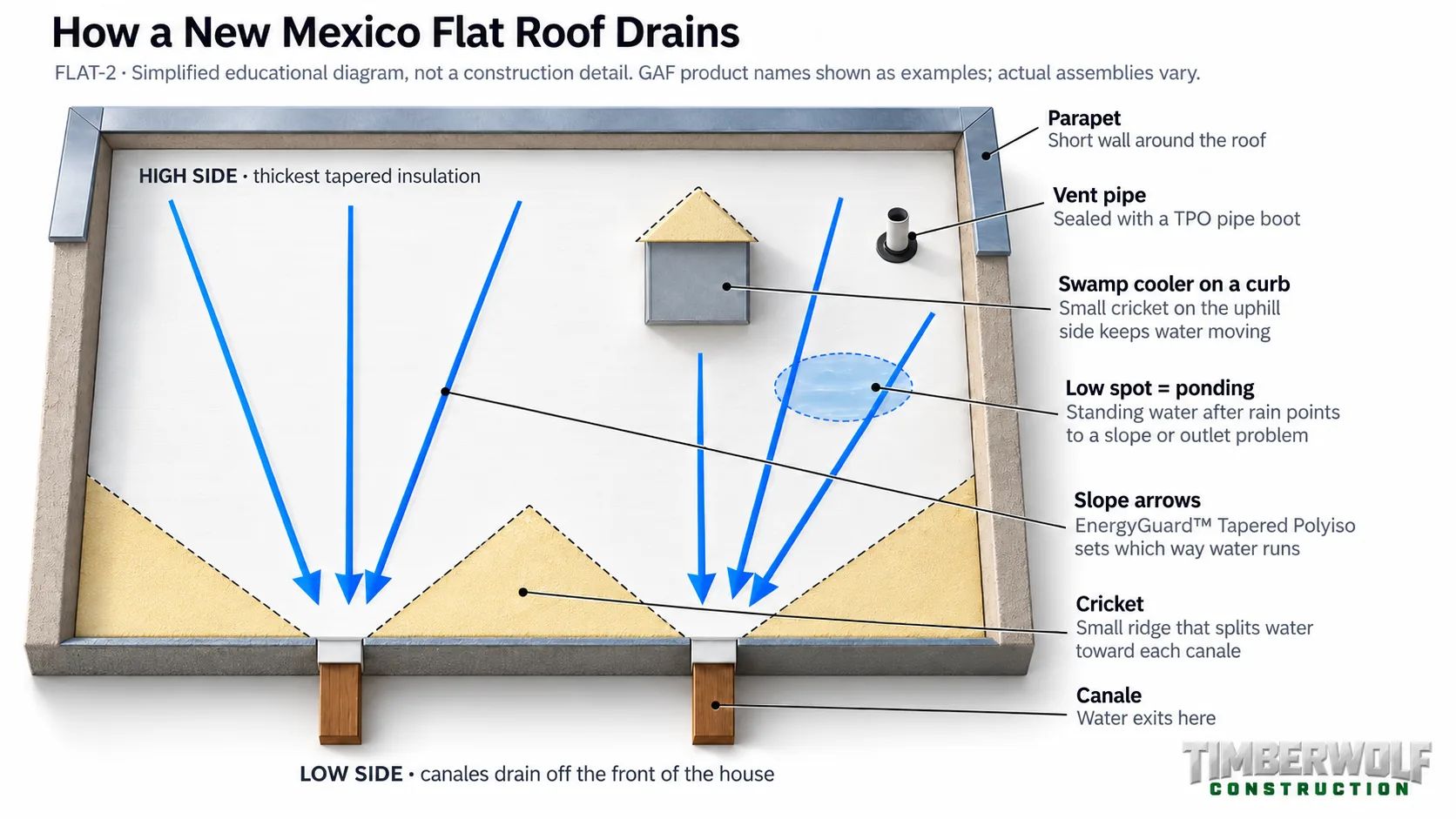

What this graphic shows

Seen from above, the blue arrows show how tapered insulation tilts the roof so water runs toward the canales on the low side. Crickets, the small triangular ridges, split the flow so water doesn’t pile up between outlets or behind the swamp cooler. The shaded oval is a low spot. If water still sits there 48 hours after a storm, the slope or an outlet needs attention.

Flat Roofs Are Built to Drain, Not to Hold Water

"Flat roof" is a bit of a misnomer. Every properly built flat or low-slope roof has a slight tilt engineered into it, directing water toward drains, scuppers (drainage openings through the roof edge), or gutters. That tilt is small, a quarter inch of drop for every foot of roof, but it's enough to move water off the surface within a normal timeframe after rain.

The Layers That Create the Slope

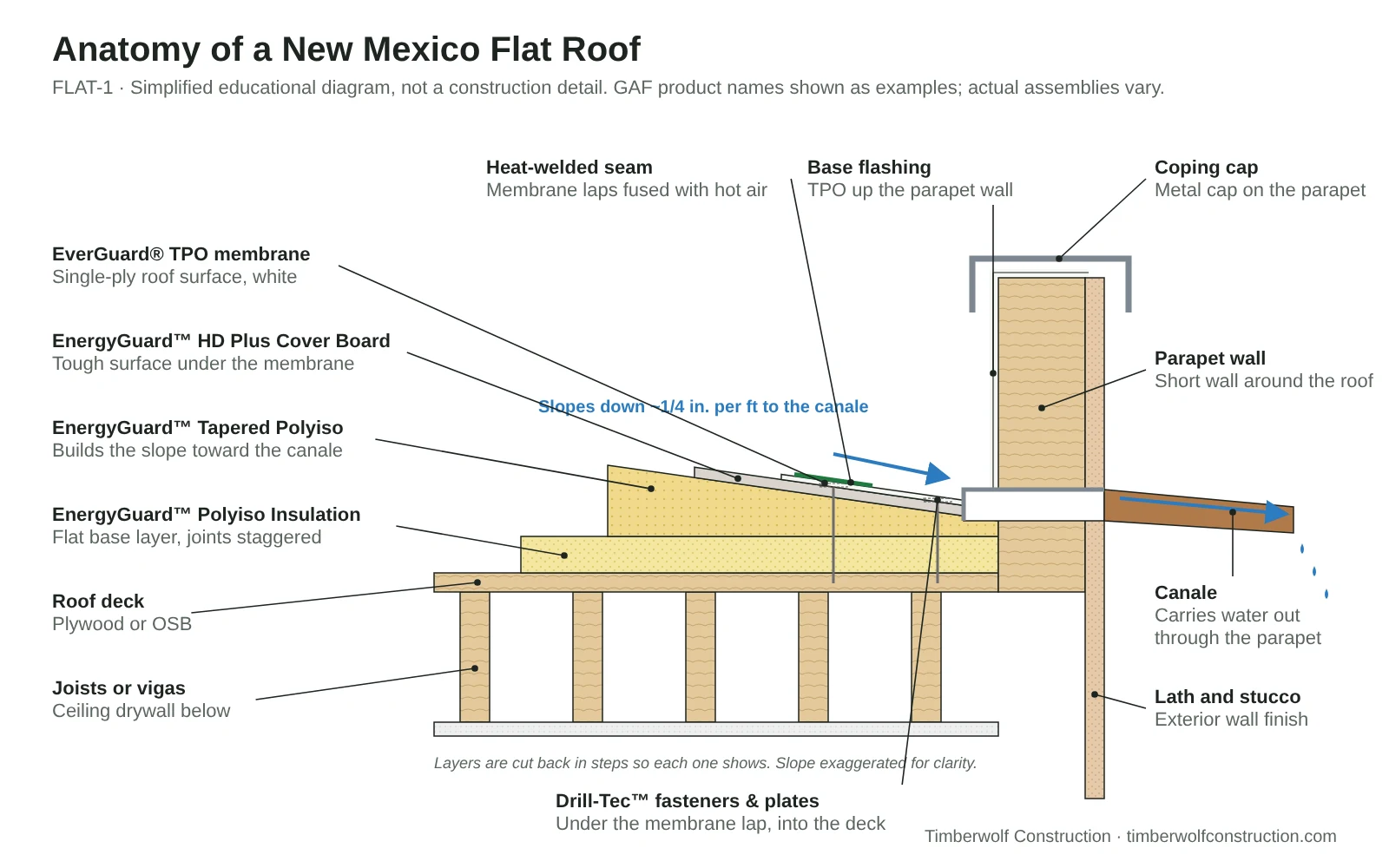

What this graphic shows

This cutaway shows the layers on a typical New Mexico flat roof, from the wood deck up to the white TPO membrane. In this example, tapered insulation creates the slope and gets thinner toward the canale; on some roofs the deck itself is sloped instead. Where the roof meets the parapet, the membrane turns up the wall and a metal coping caps the top, so water has one way out: the canale.

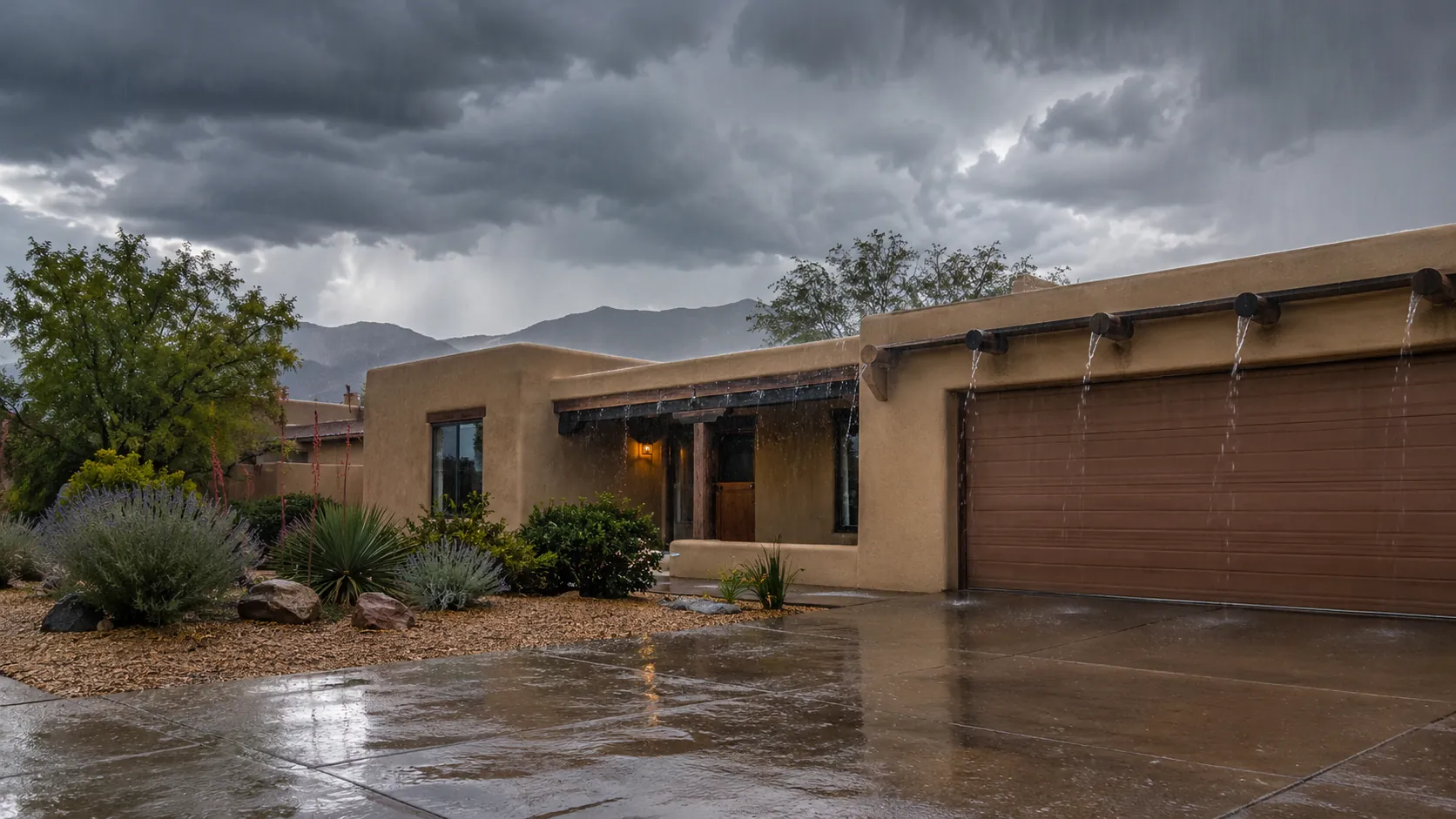

Monsoon storms test that system differently than steady rain does. Our companion article on monsoon season covers why these storms arrive as short, intense bursts instead of gradual rainfall. For a flat roof, that means the drainage system has to move a large volume of water fast.

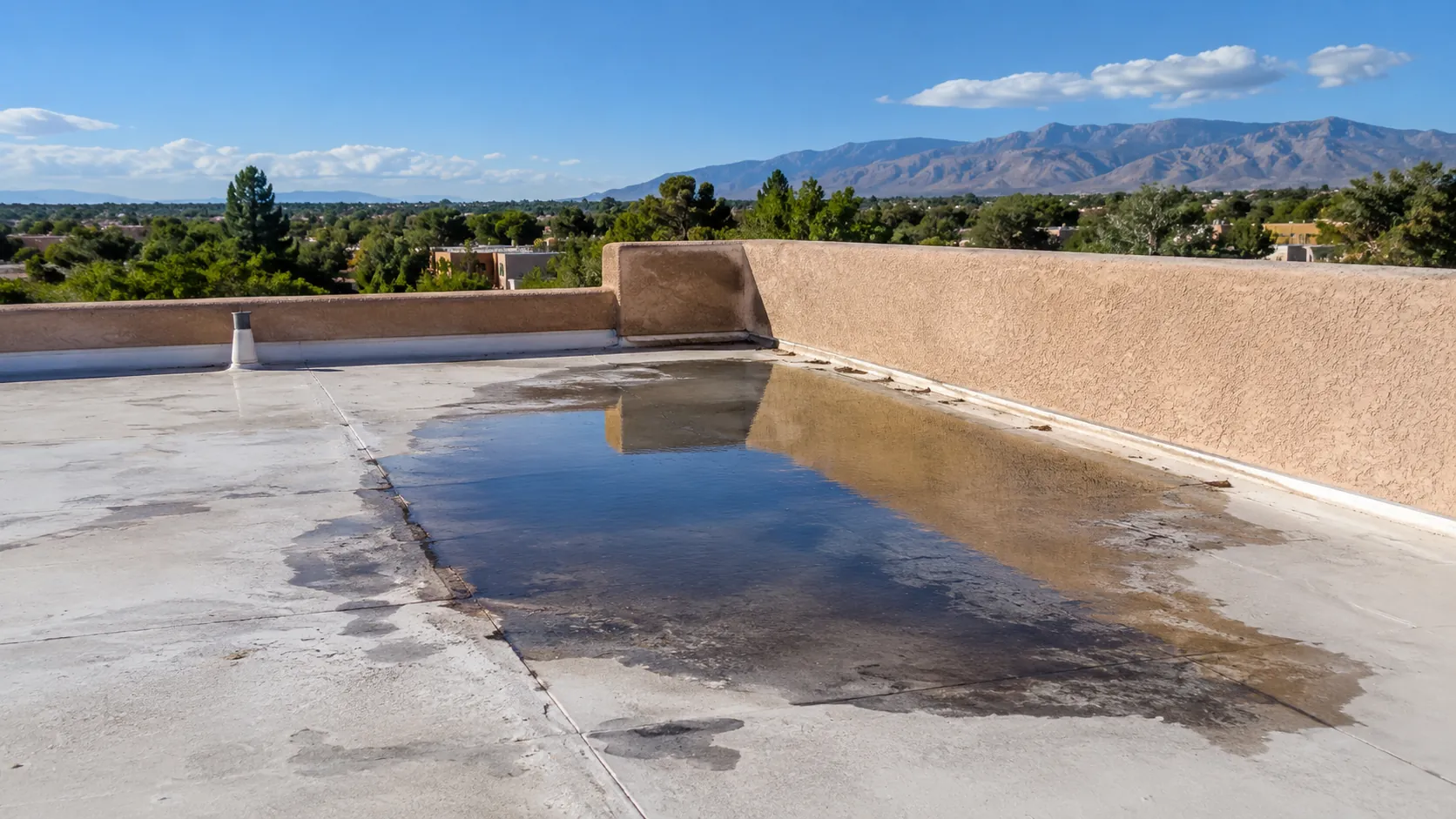

Why Standing Water Becomes a Problem

A little water sitting on a flat roof right after a storm is normal and not a concern by itself. The issue is duration. Water still standing 48 hours or more after rain, under normal drying conditions, is a sign the drainage may not be working. It doesn't mean the roof has failed, but the longer water sits, the more it loads the structure and wears the membrane. Industry guidance treats 48 hours as the point where ponding becomes a concern.

Standing water stresses a roof membrane in a few specific ways. It adds weight (each inch of standing water adds about 5.2 pounds per square foot), which puts load on the structure underneath. It can also speed up membrane wear, since prolonged moisture and UV exposure together break materials down faster than either one alone. How much depends on the roof system, its condition and how long the water sits. And on older membranes, standing water can work into small existing cracks or seams that would otherwise stay dry.

What Causes Drainage to Fail During Monsoon Season Specifically

Clogged drains and scuppers. Dust, leaves, and debris build up during New Mexico's long dry stretch, then get flushed toward drains the moment monsoon rain starts. Sometimes they clog the exact opening that's needed most, right when the storm hits hardest.

Where Water Leaves the Roof

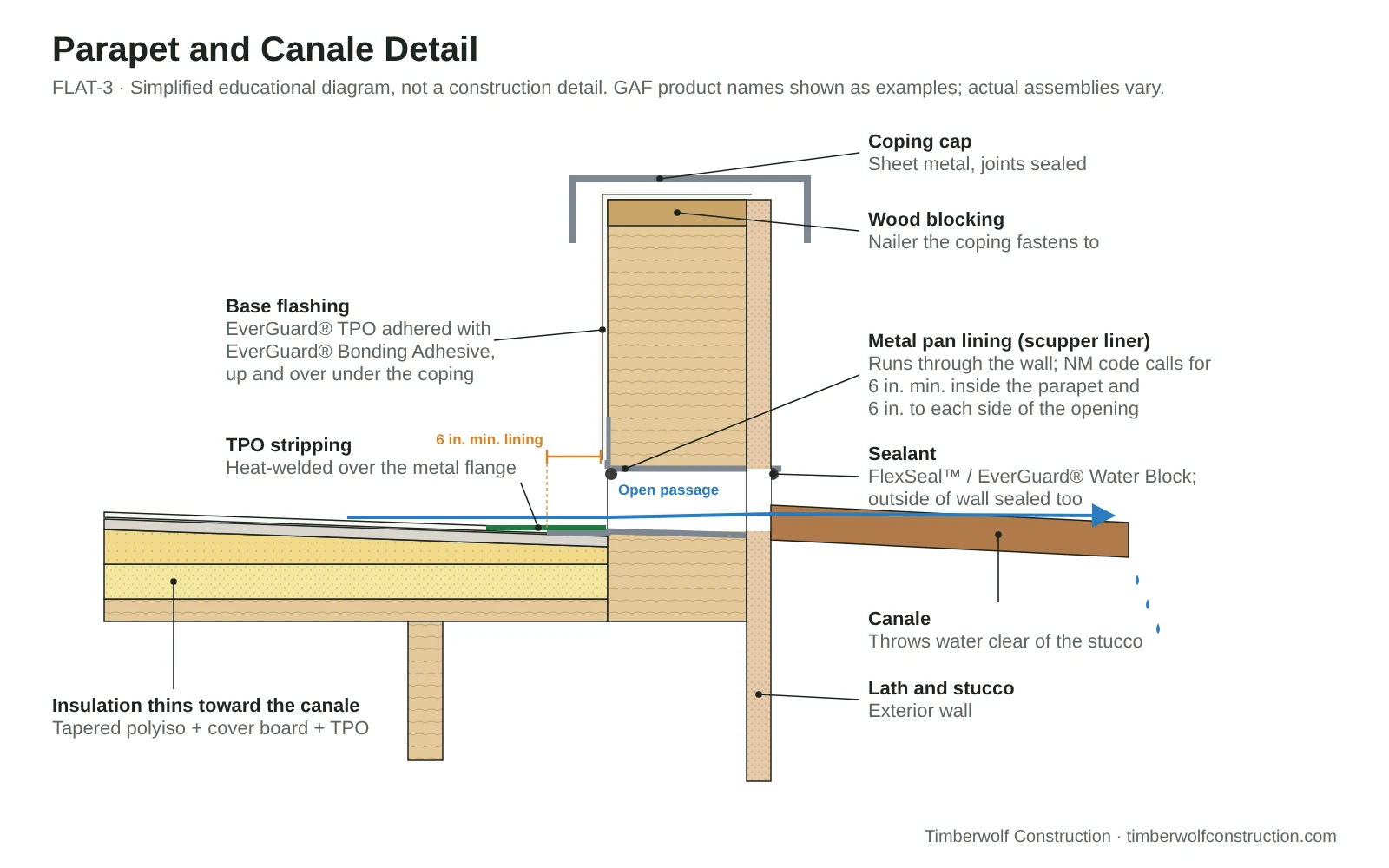

What this graphic shows

This close-up shows where the roof meets the parapet at a canale. The TPO membrane runs up the wall and under the metal coping, and a metal scupper liner carries water through the wall. TPO stripping is heat-welded over the liner’s flange and the joints are sealed inside and out. When debris clogs this opening, water backs up against the wall instead of leaving the roof.

Storm volume outpacing drain capacity. Even a well-designed drainage system has a rate it can handle. A monsoon burst dropping an inch of rain in 30 minutes can temporarily exceed that rate, even on a roof that drains fine during a normal, slower rain.

Existing low spots. Roof decks can settle slightly over time, or insulation underneath can compress in spots, especially where equipment sits or foot traffic is common. Those low spots collect water no matter how good the drain system is, because gravity pulls water to the lowest point first, not the nearest drain.

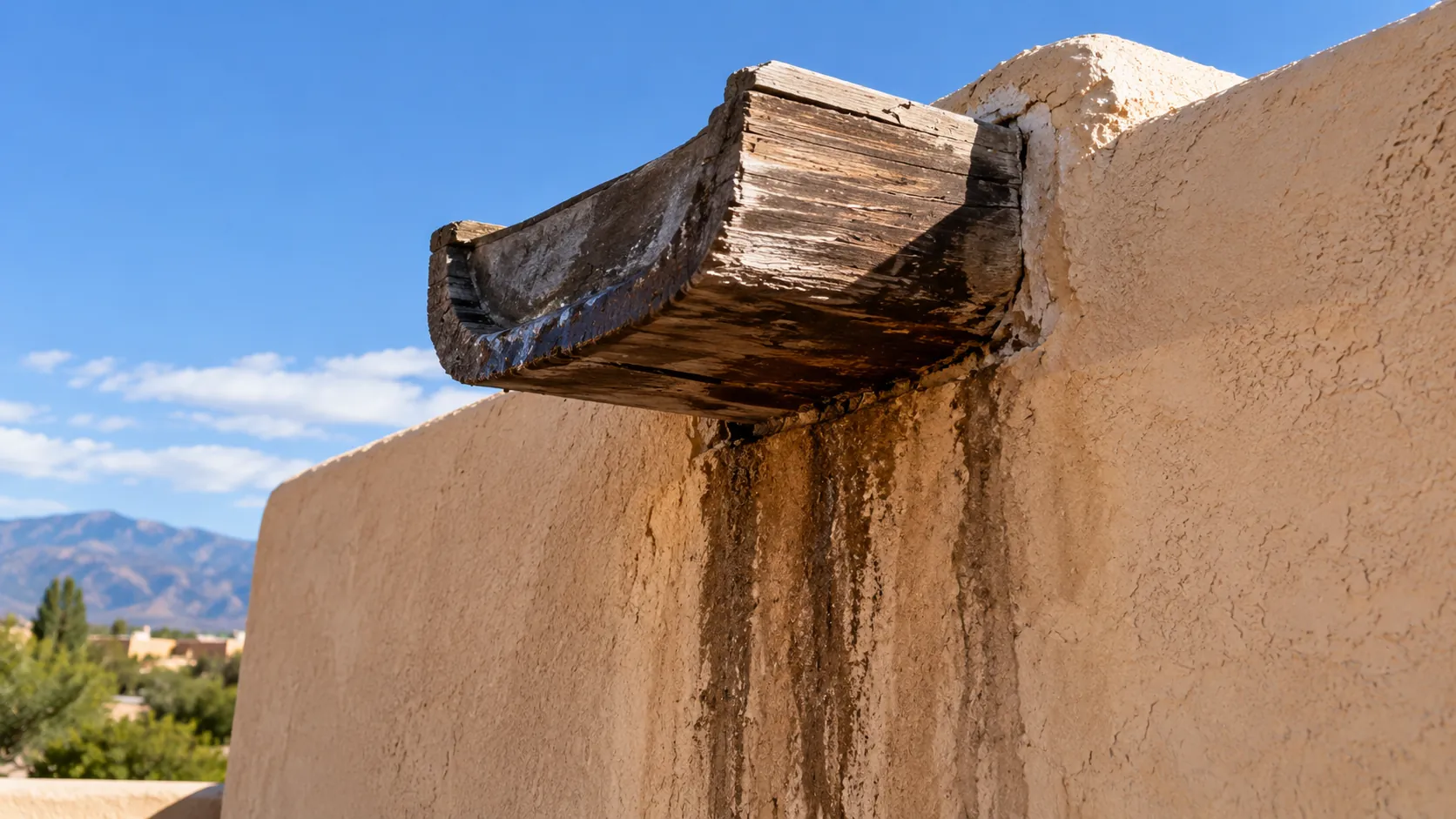

What New Mexico's Building Code Says About Canales

New Mexico adds its own canale rules to the residential building code. In the state's amendments (14.7.3.17(C) NMAC, section R905.9.5, which sits in the built-up roofing section), canales and scuppers must have:

• A metal pan lining.
• At least 6 inches of lining past the inside face of the parapet, and 6 inches to each side of the opening.
• Positive drainage, meaning water has to actually flow out instead of sitting in the opening.

Local building departments such as Hobbs apply this lining rule to residential re-roofs generally, and how it applies to a TPO or other single-ply roof can depend on the permitting office, so ask your roofer how the City of Albuquerque handles it. Either way, the lining matters: the opening through the parapet is where water most easily gets into the wall. Our guide to canales covers how they work and what goes wrong.

What This Means Practically for Property Owners

For leaks that only show up in big storms, see our separate guide.

What to do, step by step

1. After a storm, look from the ground or a safe window and note where water collects. Take photos. Don't climb onto a wet roof.
2. Check whether the canales and scuppers look blocked, and whether water is pouring out of them.
3. Look again 48 hours after the rain stops.
4. Check ceilings under flat roof sections for new stains.
5. Ask for an inspection if water is still standing, an outlet is blocked, or you see stains.

• Check drains and scuppers before monsoon season starts, not after the first big storm. Dry-season debris is the most preventable cause of drainage failure.
• If water is still standing 48+ hours after a storm, that's worth addressing, not something to wait out. That's the NRCA's own threshold.
• Commercial flat roofs especially benefit from a scheduled maintenance program heading into monsoon season, since a missed clogged drain on a large roof means a lot more standing water than the same problem on a small residential section.
